Choosing a Custom Gear Motor in 2026 requires more than comparing torque and price. Industrial buyers now evaluate efficiency, noise, thermal behavior, service life, and digital connectivity. The International Energy Agency reports that electric motor systems consume nearly half of global electricity. Small design errors can therefore create large operating costs.
Market studies also show continued demand for compact, efficient drive systems. Grand View Research identifies automation, robotics, material handling, and medical equipment as important gear motor applications. MarketsandMarkets likewise links growth with smart factories and energy-conscious production. These reports provide direction, not a final specification. Conditions vary between a conveyor running eight hours daily and a robotic joint repeating movements every second.
Dr. Manfred Wittenstein, a leading precision-drive specialist, has said, “We want to make a lasting contribution to improving people’s quality of life.” That principle matters when selecting a Custom Gear Motor. A reliable unit should match the real load, duty cycle, ambient temperature, mounting position, and control method. Start with measured data. Guesswork is expensive.
This guide examines planetary, worm, helical, and bevel configurations. It compares torque density, backlash, efficiency, acoustic output, and maintenance needs. It also considers encoder feedback, braking, ingress protection, and supplier validation. One assumption deserves caution: higher efficiency does not always mean better overall value. A costly motor can still fail when thermal limits, shaft loading, or replacement access receive little attention. Readers should verify every quoted market figure and supplier claim against the latest technical documents.
Define the Application Requirements for a Custom Gear Motor
Before choosing a custom gear motor in 2026, define the application in measurable terms.
Record the required output torque, speed range, acceleration, duty cycle, starts per hour, and expected service life. A conveyor moving 80 kilograms needs different gearing from a compact medical actuator. Include peak loads, not only normal loads. Short overloads can damage teeth, shafts, or bearings.
Motor systems deserve careful attention.
The International Energy Agency estimates that electric motor systems consume about 50% of global electricity. The report Energy-Efficiency Policy Opportunities: Motor Driven Systems identifies efficiency as a major industrial opportunity. For this reason, calculate operating hours and energy demand before selecting a motor. Check supply voltage, control method, ambient temperature, humidity, dust, mounting position, noise limits, and allowable backlash. An IP rating may help, but it does not replace thermal testing.
I have seen projects fail because the gearbox was sized for average torque.
The machine stalled during cold starts. A better specification includes inertia, friction, shock loading, and braking requirements. The U.S. Department of Energy also notes that motor and drive performance depends strongly on system-level matching, not motor efficiency alone. Be honest about uncertainty. If the load profile is incomplete, request field measurements for several operating days. A neat spreadsheet can still mislead. Record the smallest clearance, highest temperature, and hardest restart condition before requesting a custom design.
Select the Gear Motor Type, Ratio, and Torque Range

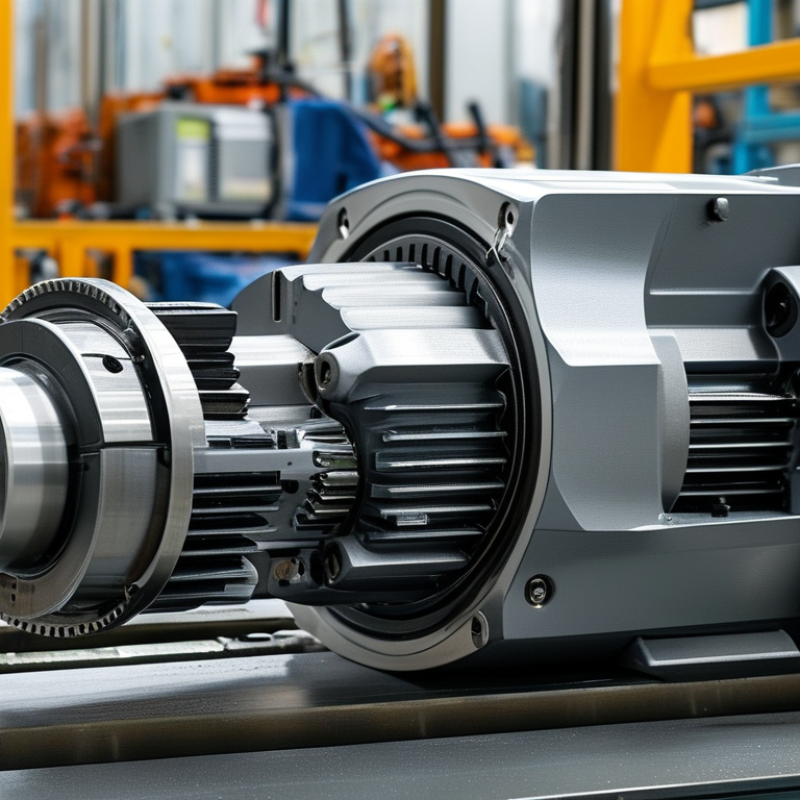

How to Choose a Custom Gear Motor in 2026?
Select the Gear Motor Type, Ratio, and Torque Range
Choosing a custom gear motor starts with the load, not the catalogue. A conveyor carrying 35 kilograms may need steady torque, while a valve actuator needs controlled movement and accurate stopping. Worm, helical, planetary, and bevel gearboxes behave differently under these conditions. The gearbox type affects efficiency, noise, backlash, and heat. The International Energy Agency reports that electric motor systems consume roughly half of global electricity, so small efficiency losses can become expensive over long operating hours.
Calculate the required output speed from the machine cycle. A 1,450 rpm motor paired with a 29:1 ratio produces about 50 rpm, before slip and load effects. Then estimate torque using load force, drum radius, and transmission efficiency. Add a realistic service factor for starting loads, jams, and repeated acceleration. Do not simply choose the largest motor. Oversizing can increase cost, inertia, and energy waste.
Torque range matters more than peak torque alone. Check continuous torque, intermittent torque, duty cycle, and thermal limits. IEC 60034-30-1 provides efficiency classifications for motor designs, while ISO 6336 offers methods for evaluating cylindrical gear strength. These standards improve comparison, but they cannot replace real testing. In field work, a motor rated for 20 Nm may still fail near 18 Nm if ventilation is poor or starts occur every few seconds. I have seen this assumption cause avoidable redesigns. Mounting space, shaft alignment, ingress protection, brake response, and actual ambient temperature deserve equal attention.
Match Motor Performance with Load, Speed, and Duty Cycle
Choosing a custom gear motor in 2026 starts with the driven load, not a catalog number. Measure continuous torque, peak starting torque, shaft speed, and available space. A conveyor carrying 18 kilograms may need modest running torque but much higher torque during acceleration. Size for reality. Also record how often the motor starts, stops, reverses, or stalls. Duty cycle changes heat. A motor running for ten minutes per hour needs different thermal capacity than one running continuously. Keep the data honest.
Match output speed through the gear ratio, then check efficiency at the actual load. A theoretical ratio may meet the speed target but leave insufficient torque at the shaft. Include friction, incline, shock loads, and a sensible service factor. In field evaluations, I prefer testing the motor near its expected operating point rather than relying on no-load figures. No-load speed can mislead. The first estimate is rarely perfect, especially when the load varies. Recheck current, casing temperature, noise, and vibration after repeated cycles. A warm housing is a warning, not a minor detail.
For intermittent equipment, calculate the equivalent thermal load across the full cycle. Ten seconds of heavy torque can matter more than several minutes of light work. Choose feedback and braking only when the application needs them; added features can increase cost and adjustment effort. Check backlash, shaft overhang, mounting stiffness, and cable routing during prototype tests. Leave room for alignment errors. Small misalignments often become large bearing loads. Record results at cold start and after the assembly reaches operating temperature. Then adjust the motor specification before production, because a paper-perfect choice may still fail in service.
Verify Prototypes, Testing Standards, and Supplier Capabilities
How to Choose a Custom Gear Motor in 2026?
Prototype verification should begin with measured performance, not a supplier’s promise. The IEA reports that electric motor systems consume roughly half of global electricity. Small efficiency errors can therefore become expensive across thousands of operating hours. Request torque-speed curves, starting current, efficiency, backlash, noise, and temperature-rise data. Test the exact motor, gearbox, controller, and lubricant combination.
Use recognized methods. IEC 60034-2-1 supports motor efficiency testing, while IEC 60034-1 addresses electrical machine ratings and temperature limits. ISO 6336 helps evaluate gear load capacity. IEC 60529 defines ingress protection ratings. For credible laboratory results, check whether the facility follows ISO/IEC 17025. A certificate alone is not enough.
Test the prototype under real conditions. Apply repeated starts, peak loads, reversing cycles, vibration, and low-temperature operation. Record housing temperature near the output bearing. Ask for raw data, calibration dates, sample size, and failed-unit records. This feels uncomfortable. It is useful. The U.S. Department of Energy has noted that motor-driven systems represent a major industrial energy opportunity, so efficiency claims deserve careful verification. Evaluate the supplier’s machining tolerances, winding capability, inspection equipment, traceability, and engineering response time. Visit the test area if possible. A polished report can still hide weak controls. I would also repeat critical tests independently, because early assumptions are often wrong.
Conclusion
Choosing a Custom Gear Motor in 2026 begins with clearly defining the application. Identify the required output torque, operating speed, load characteristics, duty cycle, available space, and installation conditions. These details help determine the most suitable motor type, gear ratio, and torque range while preventing excessive energy use, premature wear, or insufficient performance. The motor should be matched carefully with start-up loads, continuous operation demands, speed control requirements, and expected service life.
A complete evaluation should also consider gear and housing materials, control options, mounting configuration, noise limits, and protection against dust, moisture, heat, or vibration. Before full production, request prototypes and conduct practical testing under representative conditions, including torque, temperature, efficiency, noise, and endurance checks. Reviewing applicable testing standards and assessing the supplier’s engineering expertise, quality control, customization process, and production capacity can reduce project risks. A well-selected Custom Gear Motor should provide reliable performance, efficient operation, easy integration, and long-term value for the intended equipment.
