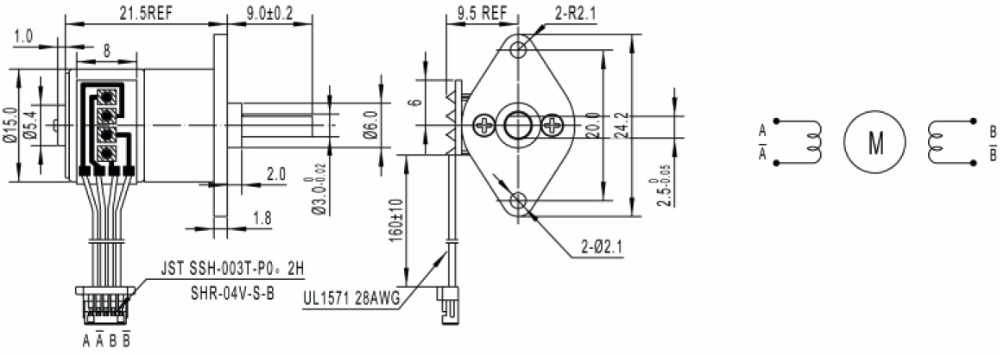

| Motor Specifications (GM12-15BY) | ||
|---|---|---|
| GM12-15BY-30 | Rated voltage: 5VDC | Resistance: 10Ω |
| No.of Phase: 2 | Holding Torque: 500g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/30 | Pull in Rate: 800pps | |
| GM12-15BY-50 | Rated voltage: 5VDC | Resistance: 10Ω |
| No.of Phase: 2 | Holding Torque: 700g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/50 | Pull in Rate: 850pps | |
| GM12-15BY-110 | Rated voltage: 5VDC | Resistance: 10Ω |
| No.of Phase: 2 | Holding Torque: 1050g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/110 | Pull in Rate: 850pps | |

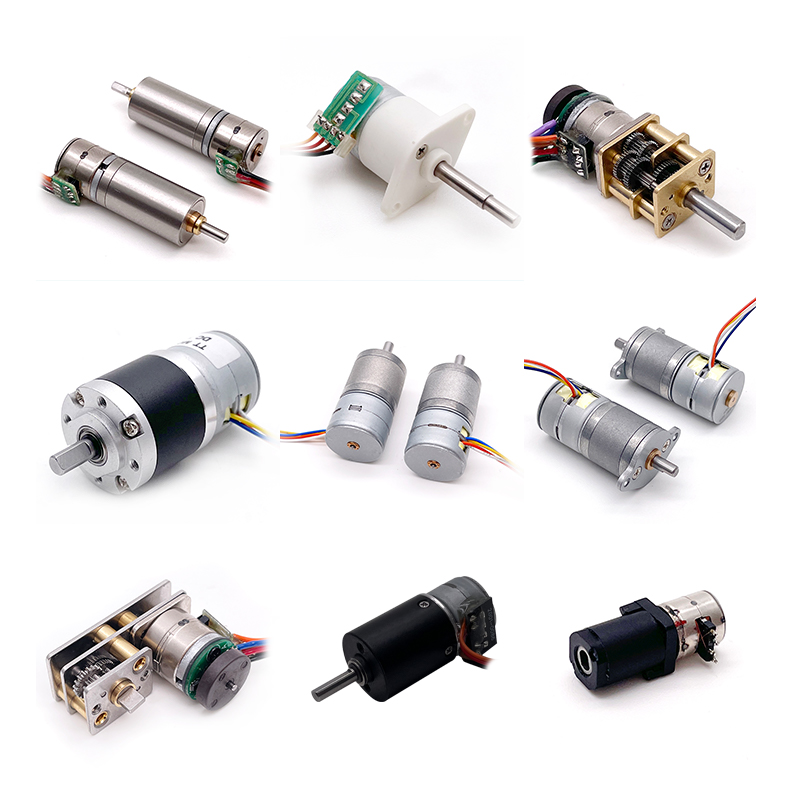

We have been specializing in DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors since 2006.
Our motors are designed to be quiet, high torque and durable with numerous sizes options. They are widely used in robotics, electric vehicle, pump, medical equipment, home and Industrial appliances, etc. Our motors are sold all over the world.
In addition, we have obtained certifications ISO9001:2015 and IATF16949. In recent years, our company has introduced a series of advanced equipment, including 100 sets Wahli hobbing machines, winding machines, auto lathe and so on.
By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to working together with you in the future.
