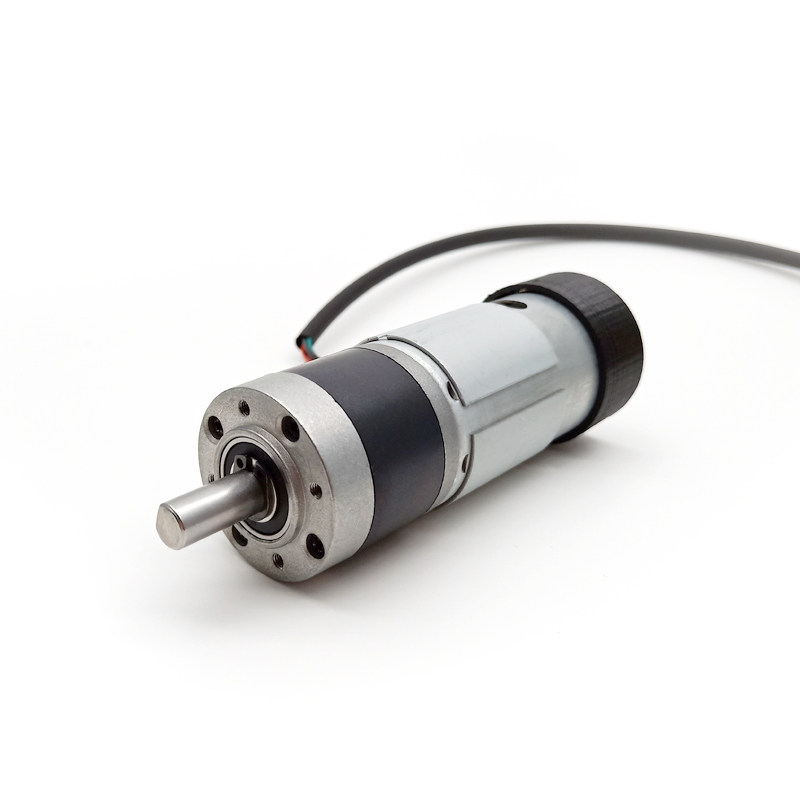

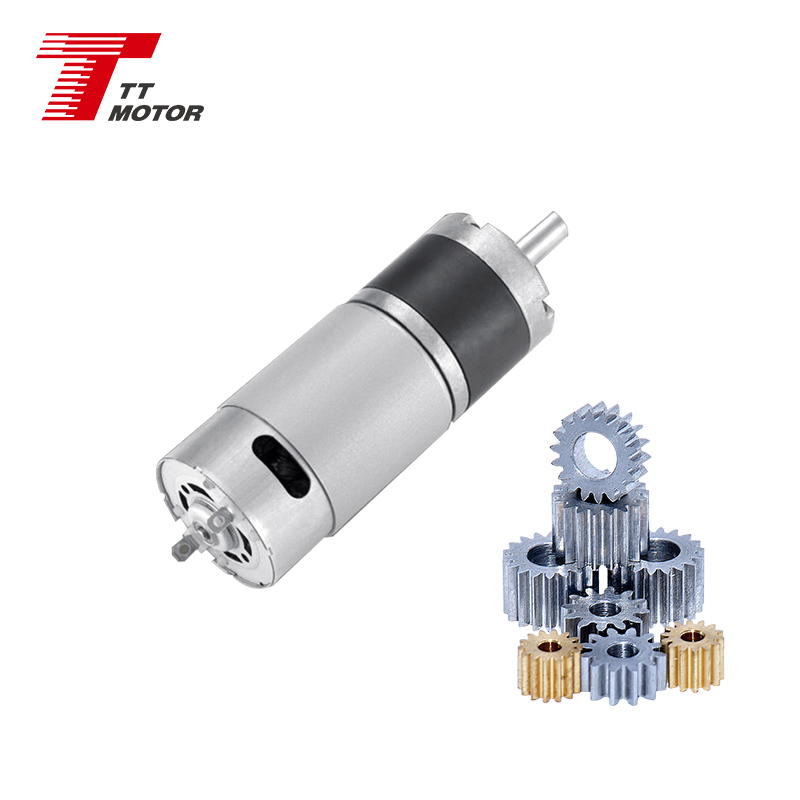

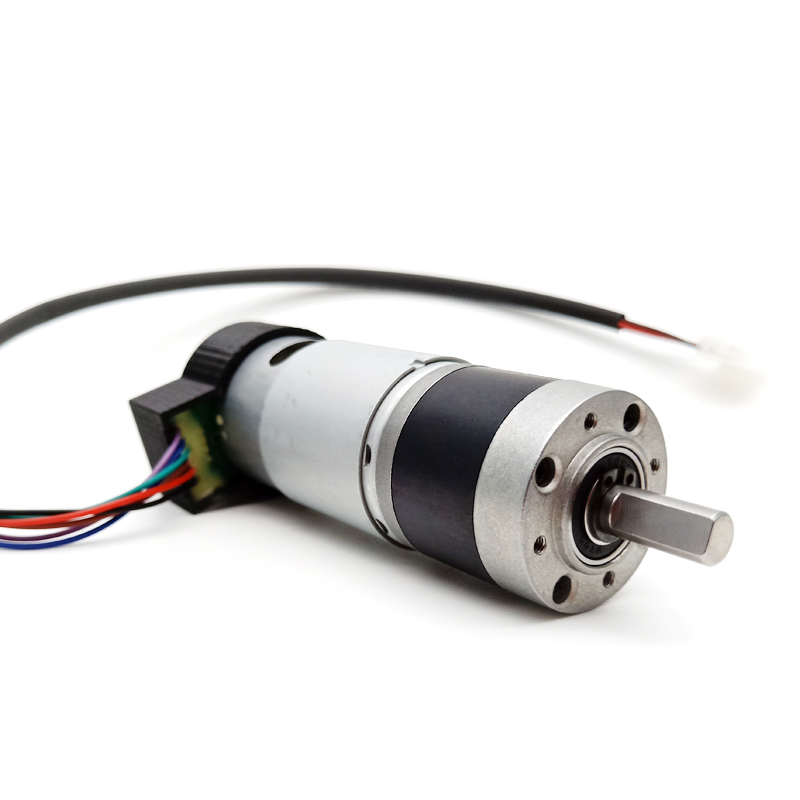

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

Send Inquiry

Product Description

GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor Encoder

Product Application

Our planetary gear motors are highly versatile and efficiently utilized in various high-performance applications:

Automatic door operators and electrical controlled valves
Automatic energy-saving baths and oxygen machines
12V DC gear motor and optical equipment
Automat cordless power tools, cameras, and lighting systems

Technical Specifications (Gear Motor GMP36-555PM)

Model	Electrical Parameter	Speed Parameter	Torque & Current Parameter
TTRS-555PM-1233	Rated voltage: 12VDC	Rated speed: 2800 r/min	Output power: 5.7W
	No-load current: 200mA	No-load speed: 3300 r/min	Rated torque: 200 g.cm
	Stall current: 5.5A	Stall torque: 1150 g.cm	Rated current: 1000mA
TTRS-555PM-1260	Rated voltage: 12VDC	Rated speed: 5250 r/min	Output power: 16W
	No-load current: 300mA	No-load speed: 6000 r/min	Rated torque: 290 g.cm
	Stall current: 15.0A	Stall torque: 2200 g.cm	Rated current: 2400mA
TTRS-555PM-2440	Rated voltage: 24VDC	Rated speed: 3150 r/min	Output power: 6.4W
	No-load current: 150mA	No-load speed: 2400 r/min	Rated torque: 200 g.cm
	Stall current: 2.7A	Stall torque: 1000 g.cm	Rated current: 700mA

Main Features

36mm Planetary reducer combined with 3530 / 5-series carbon brush motor and TEC3650 & TEC3640 brushless motor option.
Compact dimensions with low speed output paired with large torque values.
Provides a stable 3.0Nm maximum continuous output torque for reliability.
Optimized for small-diameter, low-noise, and heavy-load demands.
Compatible with standard motor encoder configurations (11 PPR).
Wide selection of gear reduction ratios: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720.

GMP36-555PM-1233 Ratio Configuration Spec

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	750	160	60	32	23	17	12	9	6
Rated speed rpm	700	150	55	28	20	15	11	8	5.5
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max. momentary tolerance kg.cm	3.7	15	35	70	70	70	70	70	70

GMP36-555PM-1260 Ratio Configuration Spec

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	1400	300	110	55	42	32	23	16	11.5
Rated speed rpm	1300	275	100	50	38	28	20	15	10.5
Rated torque kg.cm	0.9	3.8	9	18	22	30	30	30	30
Max. momentary tolerance kg.cm	5	20	60	60	60	70	70	70	70

GMP36-555PM-2440 Ratio Configuration Spec

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	980	200	75	38	28	21	15	10	7.5
Rated speed rpm	750	155	60	30	21	16	13	9.5	7
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max. momentary tolerance kg.cm	3.2	13	25	50	60	70	70	70	70

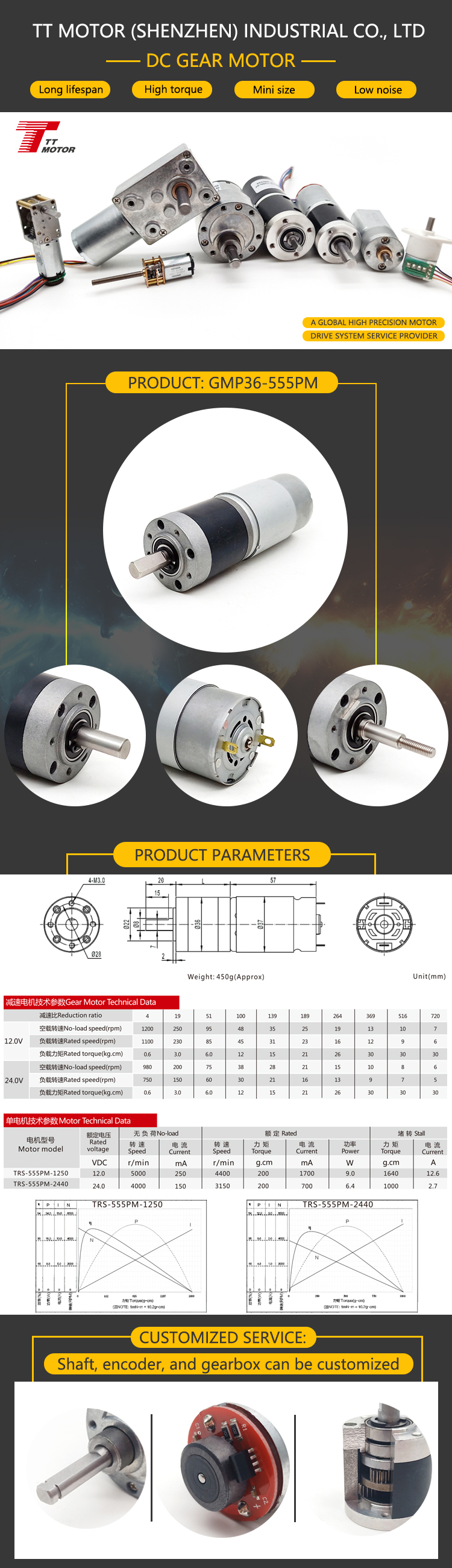

Application Scope & Dimensional Drawing

Additional Fields of Application:

Business Systems: Vending Machines, Printers, ATM, Copiers and Scanners
Camera & Optical: Video Systems, Security Cameras, Projectors
Lawn & Garden Equipment: Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers

Certifications & Quality Assurance

Our products conform to international quality and environment systems:

ISO9001 Certification
SGS Compliant & National High-Tech Enterprise Standardizations
