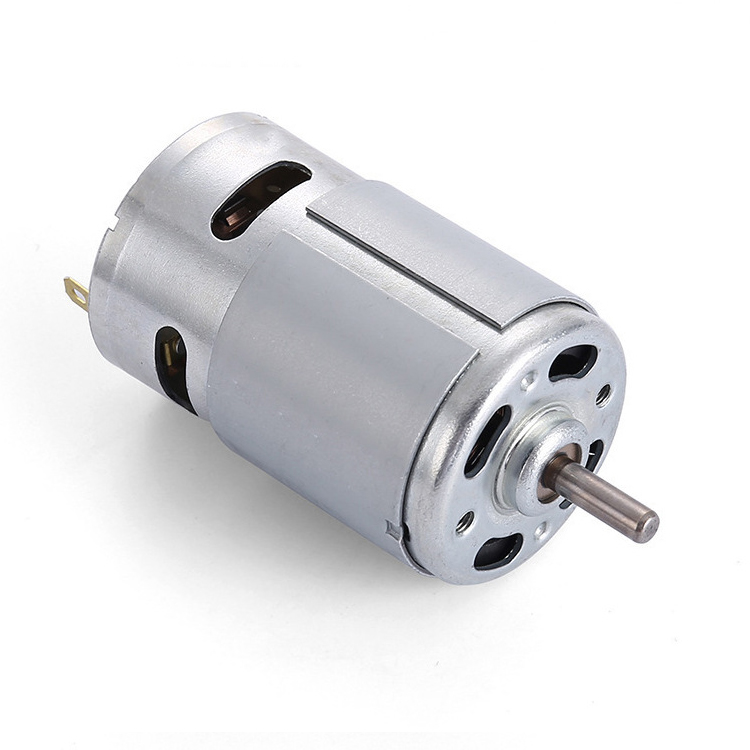

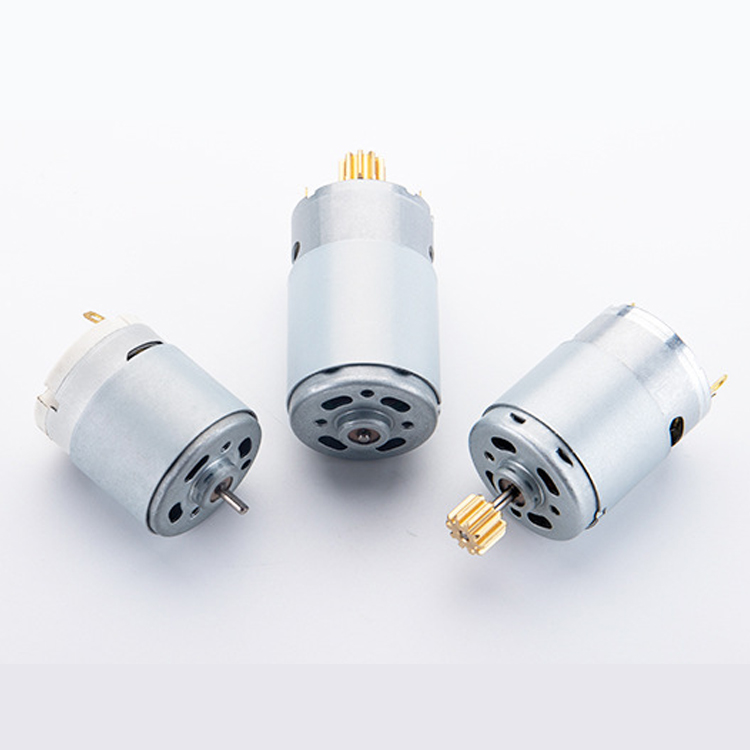

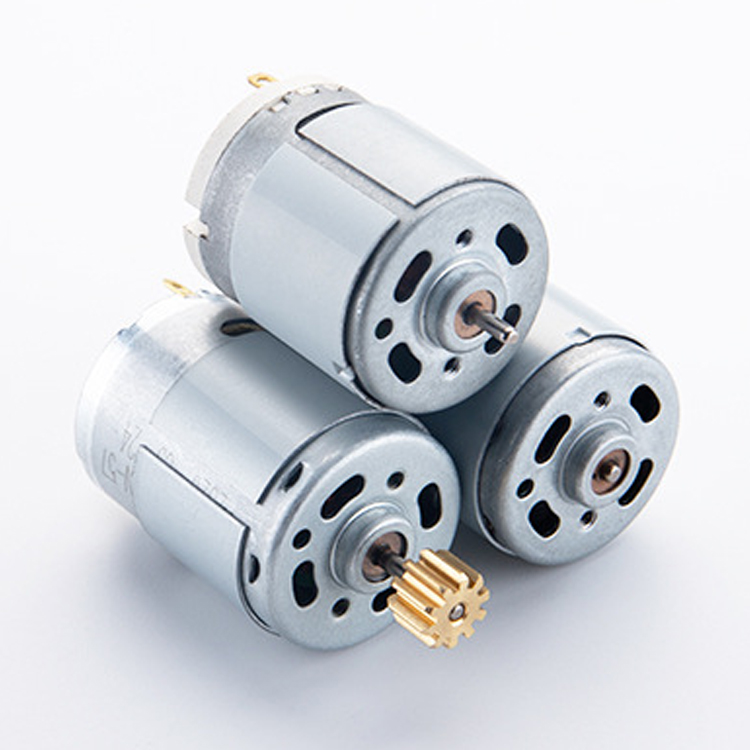

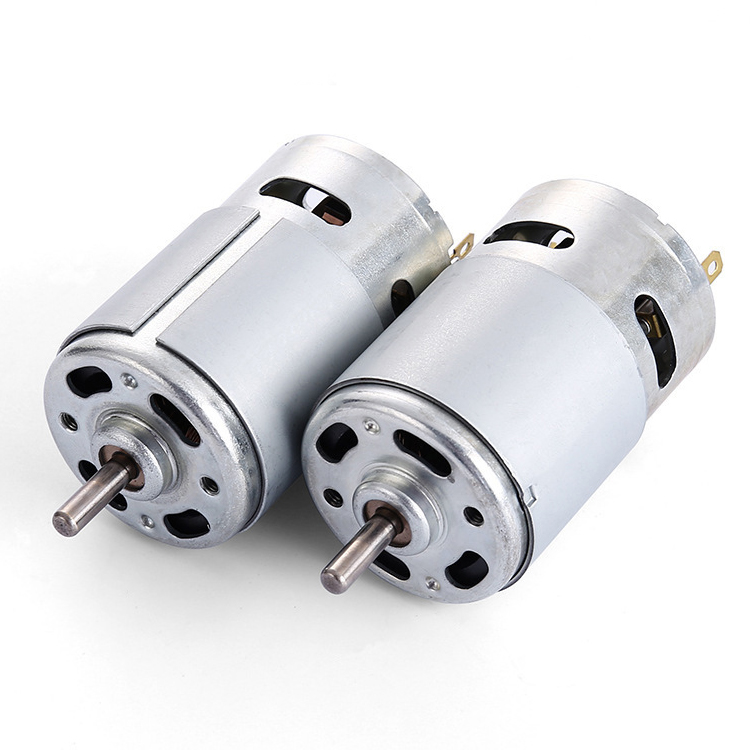

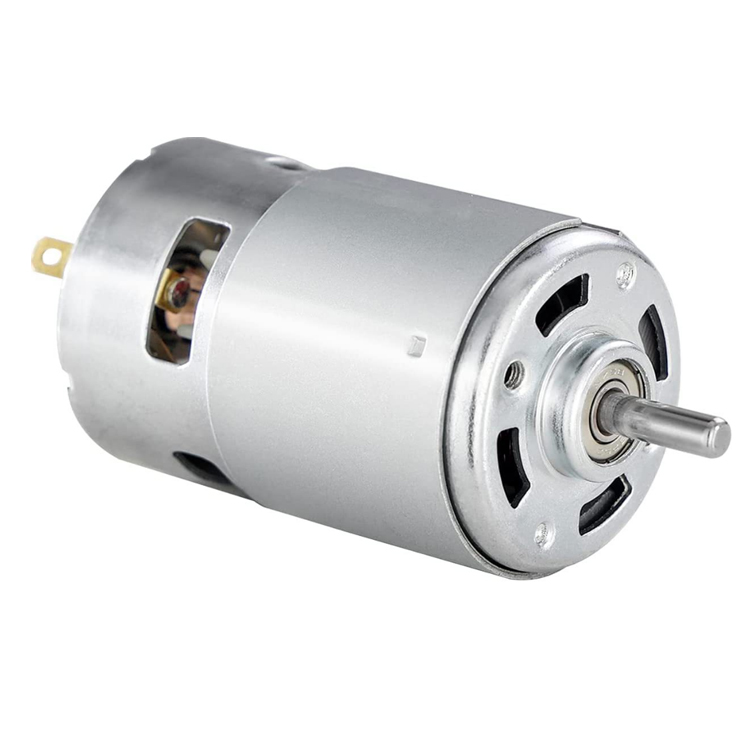

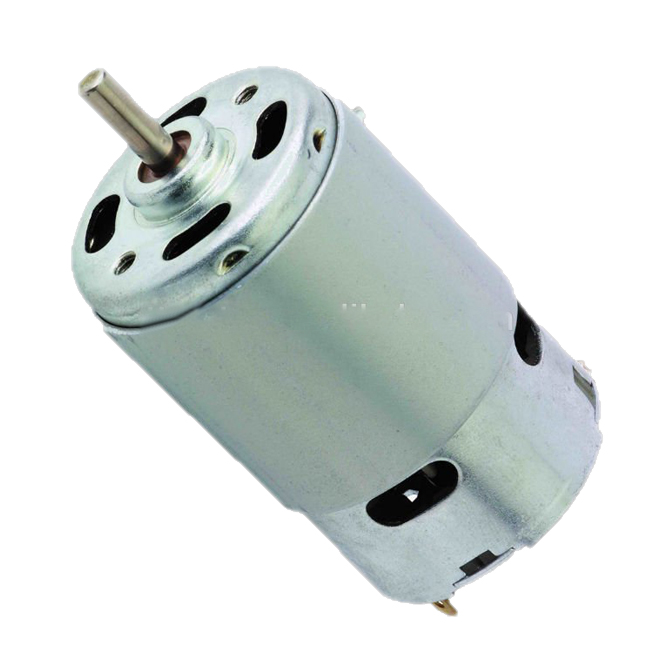

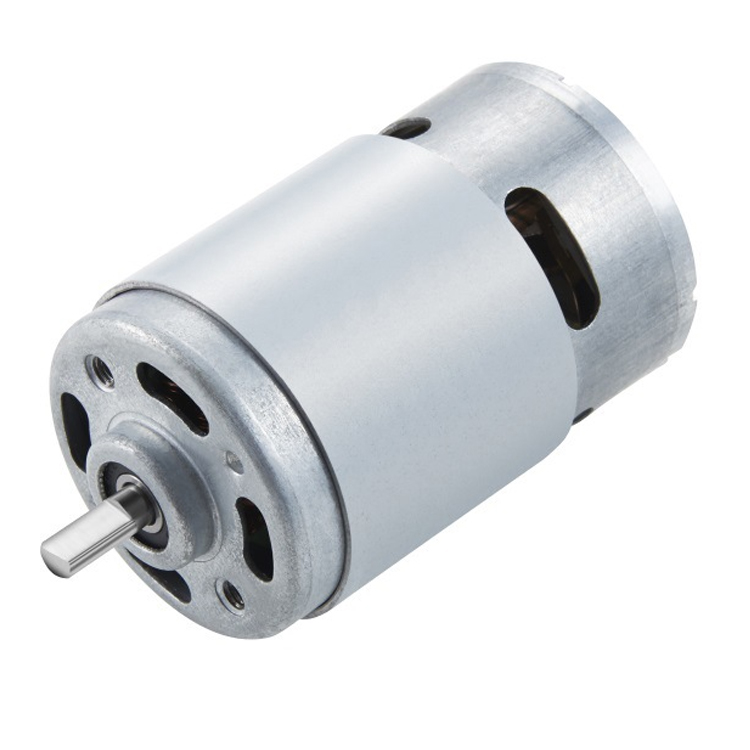

High RPM RS-555 and RS-775 DC Motor 12V 24V DC Brushed Motor
Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
High efficiency, less noise, and low current, 24V DC motor.
Can match with 45mm planetary gearbox, or 51mm gear box.

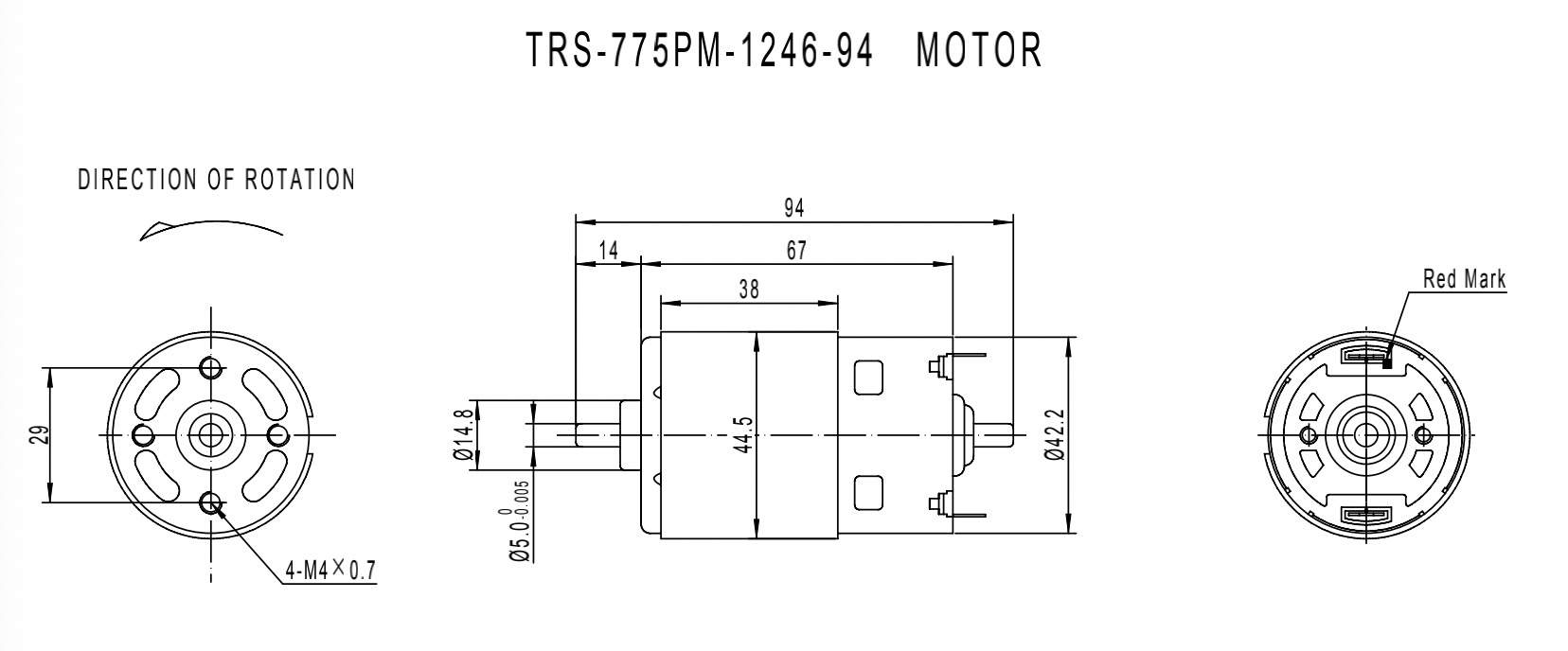

Shaft Specifications: 5.0mm diameter, shaft length 14.5/19.5mm.
Mounting Holes: 2-M4.0x0.7.
Double shaft for encoder, 12ppr.
We can provide samples for your test.
| MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
| OPERATING RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| V |
rpm |
A |
rpm |
A |
mN.m |
g.cm |
w |
mN.m |
g.cm |
A |
| TRS-775PM |
2765 |
6.0-30.0 |
24.0 |
7600 |
0.37 |
5810 |
0.22 |
73.53 |
750 |
44.7 |
312.35 |
3186 |
8.23 |
| 4045 |
6.0-15.0 |
12.0 |
4600 |
0.60 |
3500 |
4.30 |
84.31 |
860 |
36.6 |
352.94 |
3600 |
16.1 |
Frequently Asked Questions (FAQ)
Q: What are the typical applications for the RS-555 and RS-775 DC motors?
These motors are widely used in household and industrial appliances including printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, and string trimmers.
Q: What voltages do these motors support?
They are designed for 12V and 24V DC configurations, with operating voltage ranges typically between 6.0V to 30.0V depending on the model.
Q: Can these motors be paired with a gearbox?
Yes, these motors can be matched with a 45mm planetary gearbox or a 51mm gear box to achieve custom torque and speed options.
Q: What are the default shaft specifications?
The motor shaft has a 5.0mm diameter, with available shaft lengths of 14.5mm and 19.5mm. We also support double shaft configurations for 12ppr encoders.
Q: Are testing samples available?
Yes, we can provide samples upon request for your testing and evaluation purposes.
